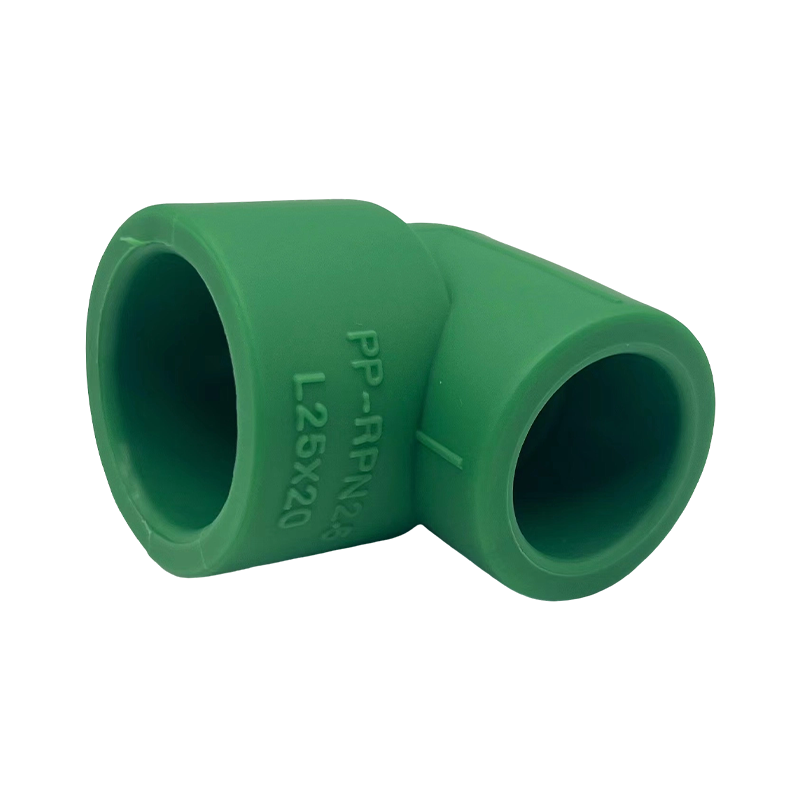

PPR Reducing Elbow Pipe Fitting

Application Scenarios & Installation

The reducing elbow is most valuable in tight or space-constrained installation points where a pipe run must turn a corner and step down in diameter within a very limited area — for example, connecting a larger vertical riser to a smaller horizontal branch line at a wall or floor penetration, or feeding an individual appliance, faucet, or water heater from a larger distribution line via a single compact corner fitting. In prefabricated bathroom pods, compact utility closets and multi-fixture bathroom groups, where several supply lines have to be routed through a small service cavity, the reducing elbow lets installers combine two operations into one part, simplifying both the layout and the installation sequence.
The fitting is also common in commercial kitchen and hospitality plumbing, where equipment connections often sit at odd angles relative to the main supply line and require both a directional change and a smaller final connection size. In HVAC and mechanical rooms crowded with pipework, ductwork and equipment, using a reducing elbow instead of a separate reducer-plus-elbow combination can be the difference between a connection that fits cleanly and one that requires re-routing the entire section. For contractors and distributors, stocking this fitting alongside standard elbows and reducing sockets rounds out a complete PPR fitting offering capable of handling virtually any combination of direction change and diameter transition encountered on site.
