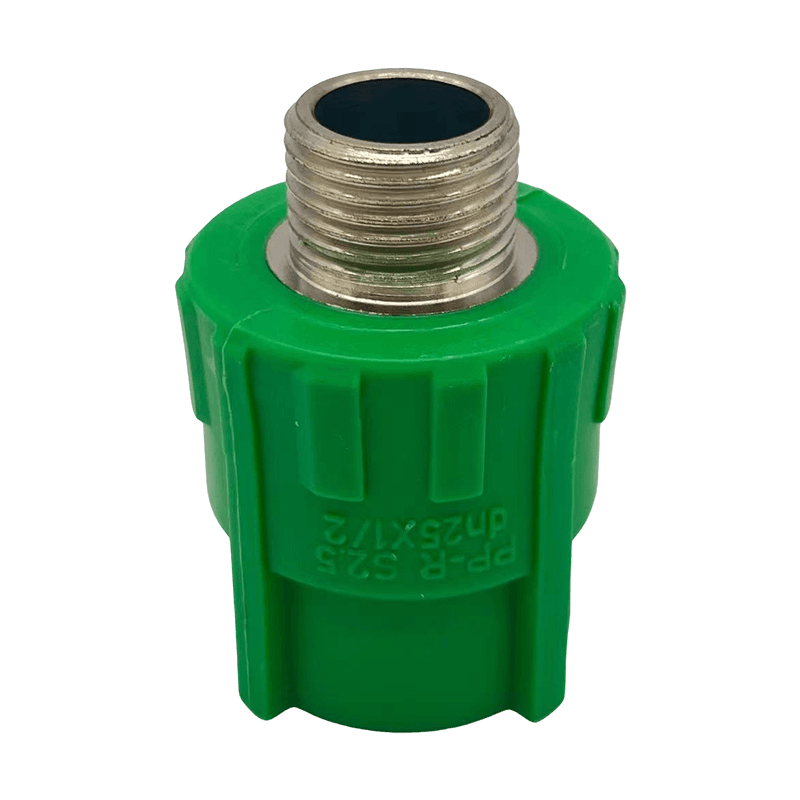

PPR Brass Insert Male Threaded Socket

Home · Products · PPR fittings · PPR Insert Fittings · PPR Brass Insert Male Threaded Socket
  • PPR Brass Insert Male Threaded Socket
PPR Brass Insert Male Threaded Socket

PPR Brass Insert Male Threaded Socket

PPR Brass Insert Male Threaded Socket serves the opposite role of its female-threaded counterpart: it has a brass male thread on one side and a standard PPR fusion socket on the other, allowing a PPR pipe run to connect into a female-threaded fitting, meter, or piece of equipment. This is a common requirement wherever the downstream component — rather than the pipe fitting — carries the female thread.
As with the female-threaded version, the brass thread is embedded into the fitting body during production, giving it more resistance to pull-out than a separately attached metal adapter would have. The PPR side of the fitting is heat-fused to the pipe in the usual way, keeping the transition point consistent with the rest of the piping system. Because male and female threaded inserts are both common in plumbing hardware, having both versions available allows installers to match whichever thread orientation the connecting fixture requires, without needing to add an extra adapter fitting in the line.

Inquiry
PREV: PPR Brass Insert Female Threaded Elbow Next: PPR Brass Insert Female Threaded Socket

Application Scenarios & Installation

This fitting is commonly used to connect a PPR line into components that have a female-threaded inlet, such as certain water meters, in-line filters, pressure reducing valves, and some brands of mixer taps. It also appears where a PPR branch line needs to screw directly into a female-threaded port on a manifold or distribution header.
During installation, the PPR socket is fused to the pipe first, and the male thread is then screwed into the mating female-threaded component with an appropriate sealant. Because the connection point is often at equipment that may need periodic servicing (meters, filters), installers should avoid over-tightening the threaded joint and should support the fitting rather than relying on the thread alone to bear mechanical load during installation.


NAME SIZE Gram weight Stainless Steel Copper PCS/CTN Box gauge
MALE SOCKET S20*1/2M 52 1.222 2.002 300 49*24.5*24.5
S20*3/4M 64 1.504 2.464 220 49*24.5*24.5
S25*1/2M 55 1.2925 2.1175 250 49*24.5*24.5
S25*3/4M 70 1.645 2.695 200 49*24.5*24.5
S32*1/2M 65 1.5275 2.5025 250 49*24.5*24.5
S32*3/4M 74 1.739 2.849 200 49*24.5*24.5
S32*1M 115 2.7025 4.4275 100 49*24.5*24.5
S40*1/2M 66 1.683 2.706 80 49*24.5*24.5
S40*3/4M 75 1.9125 3.075 70 49*24.5*24.5
S40*1M 115 2.9325 4.715 60 49*24.5*24.5
S40*1/1/4M 175 4.4625 7.175 55 49*24.5*24.5
S50*1/2M 78 1.989 3.198 68 49*24.5*24.5
S50*3/4M 86 2.193 3.526 58 49*24.5*24.5
S50*1M 131 3.3405 5.371 50 49*24.5*24.5
S50*1/1/4M 175 4.4625 7.175 50 49*24.5*24.5
S50*1/1/2M 231 5.8905 9.471 50 49*24.5*24.5
S63*1M 153 3.9015 6.273 45 49*24.5*24.5
S63*1/1/4M 196 4.998 8.036 45 49*24.5*24.5
S63*1/1/2M 225 5.7375 9.225 45 49*24.5*24.5
S63*2M 365 9.3075 14.965 45 49*24.5*24.5
S75*2/1/2M 630 23 37 20 49*24.5*24.5
S90*3M 992 40 55 12 49*24.5*24.5
S110*4M 1405 58 90 8 49*24.5*24.5
