PPR End Cap Pipe Fitting

Home · Products · PPR fittings · PPR Insert Fittings · PPR End Cap Pipe Fitting
  • PPR End Cap Pipe Fitting
PPR End Cap Pipe Fitting

PPR End Cap Pipe Fitting

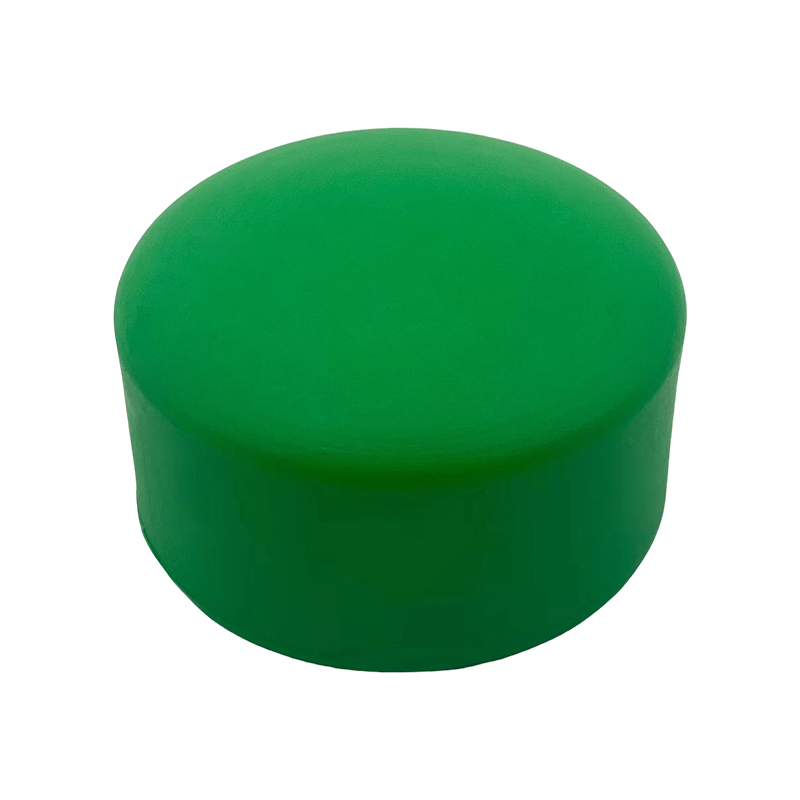

PPR End Cap Pipe Fitting is one of the simplest fittings in a PPR product line, but it plays a specific and necessary role: it seals off the open end of a pipe run completely, with no further connection point beyond it. Unlike a plug, which threads into a fitting, the end cap fuses directly onto the end of a pipe or another fitting's socket, forming a solid, permanent closure.
This fitting is molded from the same PPR resin as the rest of the fitting range and is fused into place using the same heat-fusion process, so the closure becomes a continuous part of the pipe wall rather than a removable component. Because there is no thread or mechanical seal involved, an end cap is generally intended as a more permanent termination point than a threaded plug, which can be unscrewed if the line needs to be reopened later.

Inquiry
PREV: PPR Flange Fitting Next: PPR Brass Insert Male Threaded Tee

Application Scenarios & Installation

End caps are commonly used to seal a pipe run temporarily during pressure testing before the rest of a plumbing installation is completed, allowing the system to be checked for leaks section by section. They are also used to terminate a branch line that has been left for possible future expansion — for example, a stub-out for a future fixture that is not being installed yet — where the installer wants a fully sealed, pressure-rated closure rather than leaving the pipe open.
In some cases, end caps are also used at the permanent termination of a line that will never need to be reopened, such as the far end of a dead-leg branch. Because reopening a capped line generally requires cutting the pipe and installing a new fitting, end caps are best suited to points where a genuinely permanent (or long-term) closure is intended, rather than a connection point that may need to be serviced or extended later.


NAME SIZE Gram weight RMB（UP） PCS/CTN Box gauge
CAP D20 5 0.06 3000 47*29*40
D25 8 0.096 2000 47*29*40
D32 13 0.156 1200 47*29*40
D40 27 0.324 600 47*29*40
D50 36 0.432 350 47*29*40
D63 65 0.78 180 47*29*40
D75 111 1.332 18 47*29*40
D90 174 2.088 18 47*29*40
D110 259 3.108 16 47*29*40
D160 1050 15.75 10 47*29*40
